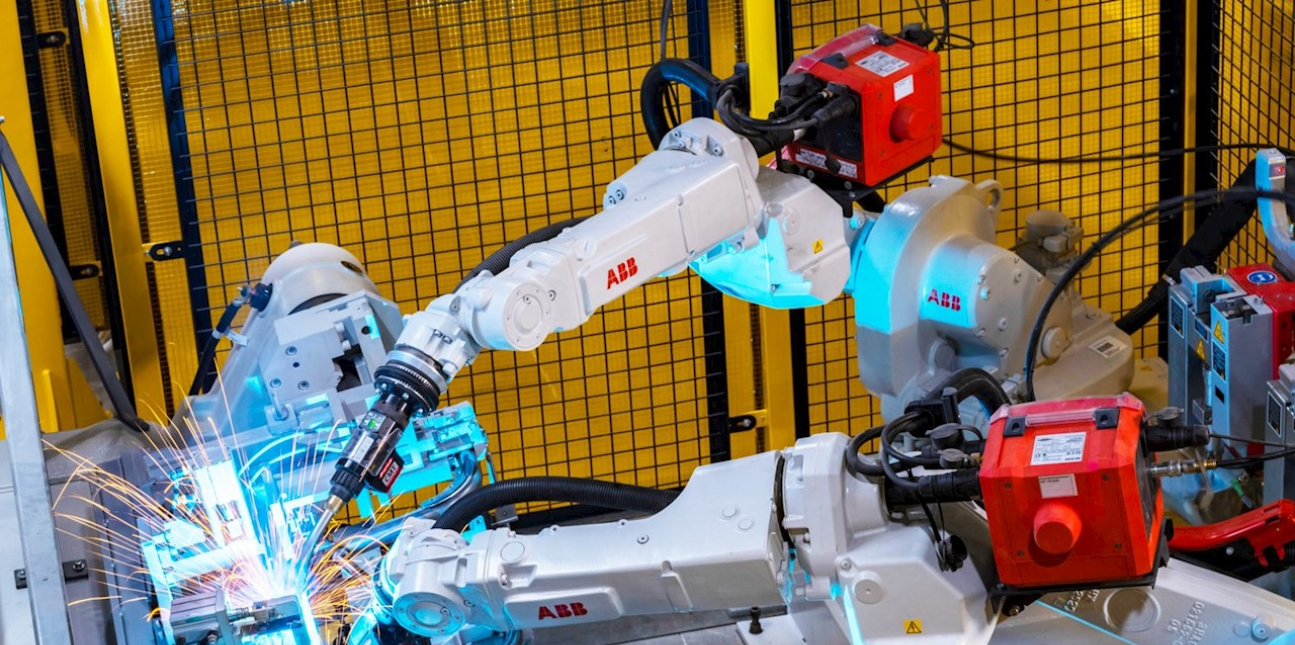

Dedicated arc welding robot This high precision robotic arc welder, with integrated process dressing, combines 24/7 production output with 50% lower cost of maintenance to deliver the lowest cost per weld in its class.

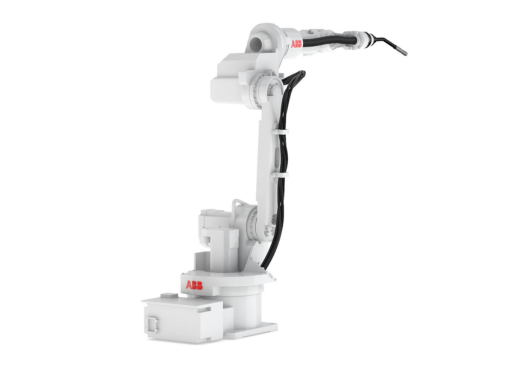

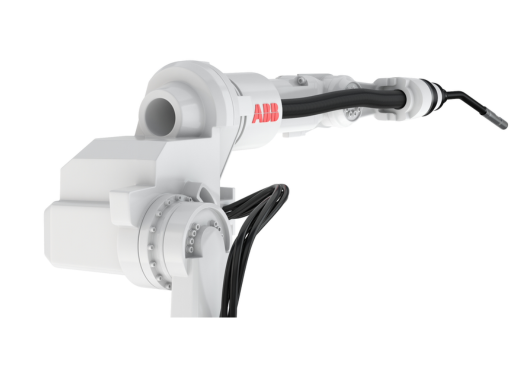

With IRB 1520ID (Integrated Dressing), the hose package is totally integrated into the upper arm and through the base of the robot. This means, all media necessary for arc welding, including power, welding wire, shielding gas and pressurized air is routed for maximized performance and energy efficiency. The IRB 1520ID delivers stable welding, excellent path accuracy, short cycle times and extended life expectancy of the hose package. Thanks to the integrated dressing, welding around cylindrical objects can be carried out without any stops and narrow spaces are more easily accessed.
Reach 1.5 m
Payload 4 kg
Number of 6 axes
Protection Standard IP40
Position repeatability 0.05 mm
Path repeatability 0.35 mm
